Stainless Steel Rotary Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket
Product Description:
Stainless Steel Rotary Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket is made by Johnson screen mesh through reverse welding.
From inside to outside (FITO):
Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.
Specification:
| Material | Stainless steel |
| Grade | 316L |
| I.D | 150-1000 mm, 400 MM |
| Slot Size | 0.1 - 30 mm, 0.75 mm |
| Components | None |
| Length | 300-3000mm, 500 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD |
| Wire | | | | | | |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | | | | | | Round wire |
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Special specification can be made according to your need.
Benefits:
● Smooth internal screen surface
● Facilitates cleaning with an internal axial-movement scraper
● The flow moves across the wire edges for effective dewatering
Industry:
● Trommel screens with internal feed
● Systems with an internal rotor or screw
● Dewatering systems
● Baskets
● Automatic filters

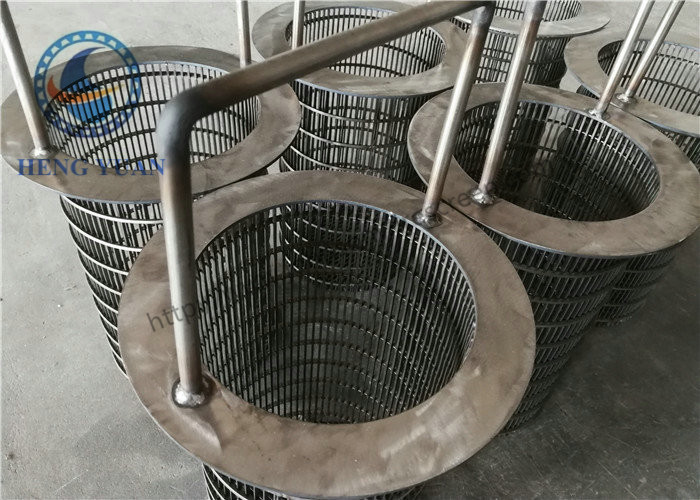

Pictures:
